waterproof cctv camera from China manufacturer

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: EC1

Production Capacity: 200000

Delivery Date: within 3 days

Specification: CCD camera

Certificate: CE,FCC,RoHS

Means of Transport: ship

Packing: each into an individual gif...

Brand Name: Vigital

Function: cctv camera

Export Area: all over the world

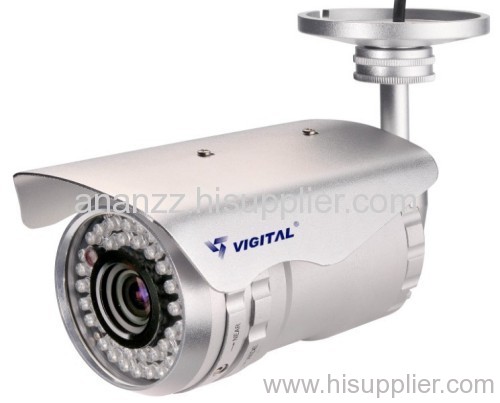

IR Day/Night Weatherproof (Large Size)
Front-exterior Vari-focal Adjustment Style EC Bullet Camera
11/3" Color SuperHAD II Low Lux CCD
Next Chip

Model:EC1R43-550HIR	Specification
Pick up device	1/3" SONY COLOR superHAD II low Lux CCD
Signal format	PAL or NTSC (color)
Picture elements	PAL: 752(H)X582(V)
Picture elements	NTSC: 768(H)X494(V)
Horizontal resolution	540TVL
Sensitivity	0 Lux(infrared LED on, at F1.2)
Infrared LED	43 leds
Infrared LED range	20~45mm
Scanning	PAL:625 TVL;NTSC:525 TVL 2:1 interlace
Synchronization	internal sync.
Infrared spectrum	850nm
S/N RATION	Over 50dB(AGC off)
Auto Gain Control	Auto
White balance	Auto
Electronic shutter	Auto
Back light compensation	Auto
Video output	1 Vp-p,75Ωcomposite, BNCX1
Audio ouput	N/A
Mirror	N/A
Gamma ratio	0.45
Auto-iris lens control	N/A(fixed lens,vari focal lens);DC Drive(auto iris lens)
Lens	Vari-focal(auto iris)lens:4~9mm & 2.8-11mm for selections
Lens mount	M12XP0.5mm thread
Exterior focus adjustment	Available(patented "roller system")
X-Axis (Pan adjusting)	Available
Y-Axis (Tilt adjusting)	Available
Power supply	12VDC
Power consumption	710mA
Dimensions	D79XL130.5 (mm)
Net weight	793g
Weatherproof/waterproof	waterproof(IP66)
Operating temperature	-10ºCto+50ºC
